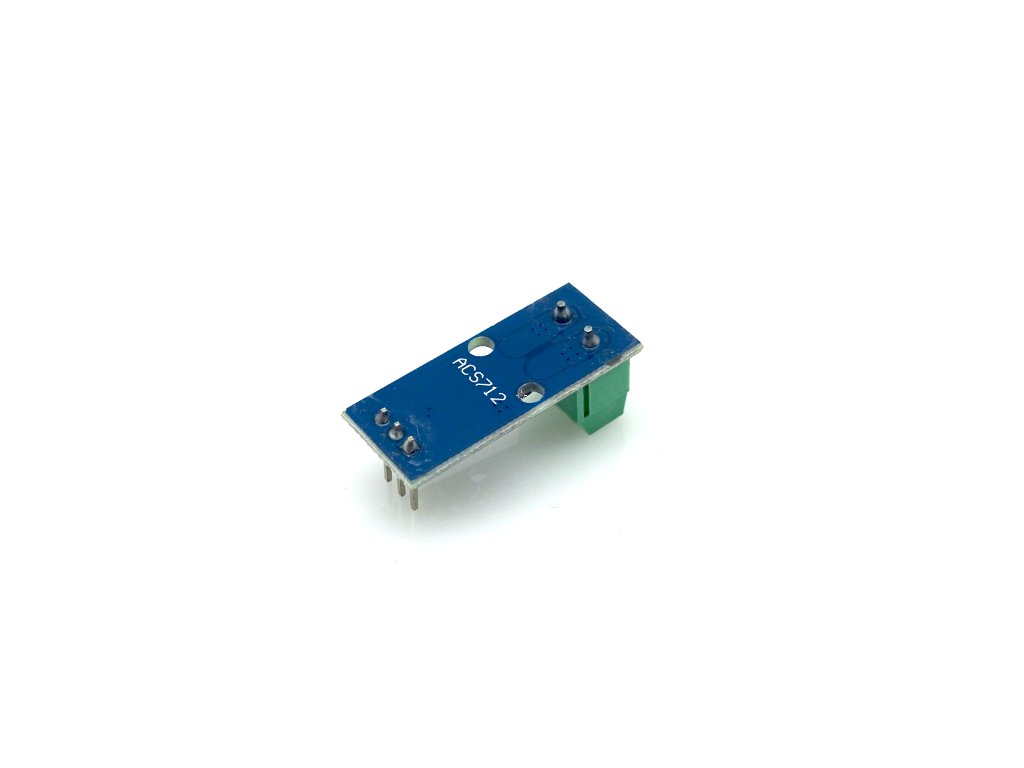

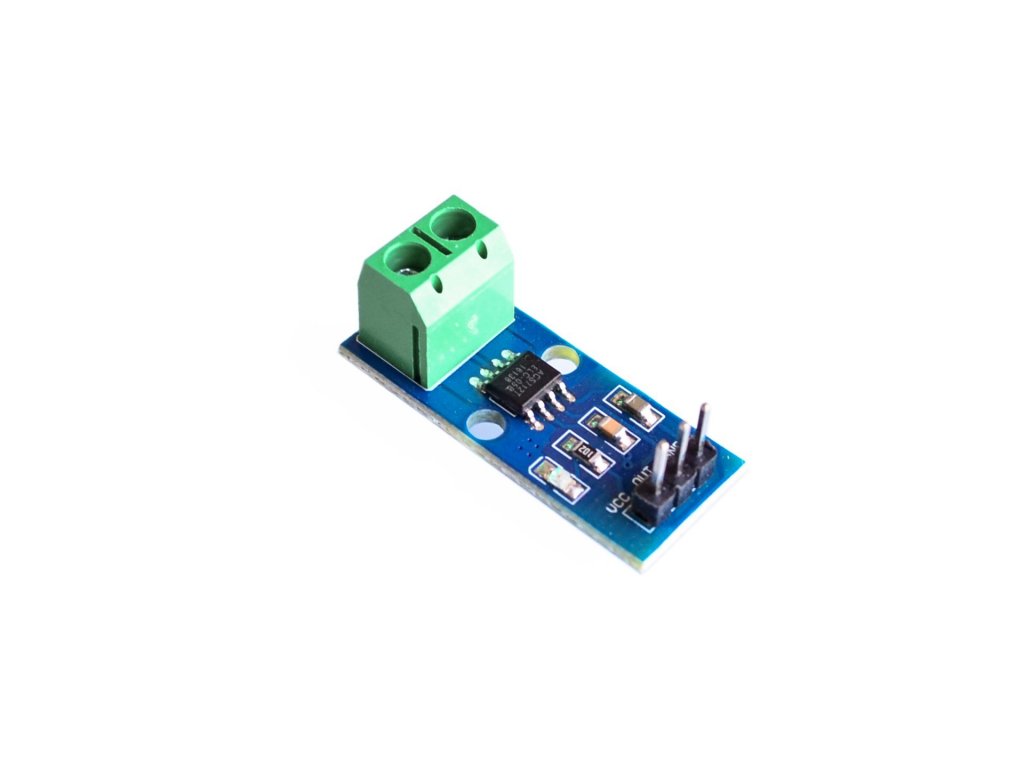

    Current sensor 20A ACS712

    Code: LA131014B
    Not rated
    Arduino Proudový senzor 20A ACS712
    €1,91 €1,58 excl. VAT
    Skladem (36 pcs)
    Delivery to:
    16/12/2024

    A current sensor based on the Hall effect, which allows measurements without contact between the measuring and measured circuit.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    foto 3
    Ai-Thinker ESP32-S 2.4GHz WiFi+Bluetooth Module
    Skladem (3 pcs)
    €2,39 excl. VAT
    €2,89

    Ai-Thinker ESP32-S module with an ESP32 chip that allows it to communicate wirelessly via WiFi and Bluetooth.

    LA100065

    Product detailed description

    This module works on the principle of Hall effect and allows you to measure the current for your application.

    Specifications:

    • Chip: ACS712
    • Supply voltage: 5V
    • Current measurement range: ± 20A.
    • Output value at I= 0A: Vcc/2
    • Sensitivity: 66-185mV/A
    • Measurement error (@ 25°C): < 1.5%
    • Internal sensor resistance: 1.2mΩ
    • Rise time: 5us
    • Insulation voltage: 2.1kVRMS
    • Bandwidth: 80kHz
    • Operating temperature: -40°C - +85°C.
    • Size: 31x13mm.

    ACS-712-Basic-Hook-Up

    Please always check the correct wiring according to the descriptions on the board!

    ACS712_3-800x600_1

    Included in delivery:

    • 1pc Current sensor 20A ACS712

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: Current sensors and voltage measurement
    Warranty: 2 years
    Weight: 0.005 kg
    Output: Analog
    Sensor type: Current
    LaskaKit live 12 48 e paper stavebnice s wifi pro zivy obraz wall
    LaskaKit Live-12.48 E-paper kit with WiFi for "Live Image"
    Momentálně nedostupné
    €245,09 excl. VAT
    €296,56

    Build your own "Living Picture"! Get a smart e-Paper display that communicates with the Live Image server via Wi-Fi to get almost any information you want. The kit also includes...

    LA180016L
    LaskaKit laskakit sada imbus sroubu matic a podlozek m3 1290ks 2
    LaskaKit set of IMBUS screws, nuts and washers M3 1290 pcs
    Momentálně nedostupné
    €15,40 excl. VAT
    €18,63

    LaskaKit set of brass screws, nuts and spacers, perfect for fixing and organizing your projects.

    LA180065B
    671 laskakit breadboard prototypovy kit
    LaskaKit Breadboard Prototype Kit
    Skladem (13 pcs)
    €8,49 excl. VAT
    €10,27

    Our kit with breadboard and lots of useful accessories like wires and power supply.

    LA180005
    Show all alternative products

    Be the first who will post an article to this item!

    Do not fill out this field:
    Do not fill out this field:
    RJ Avatar of author Dobře myšleno, ale ... ne. 10/04/2021 11:38
    Je celkem problém připojit drát o průměru 0.75mm² a více, takže pro 20A může člověk na 2.5mm² rovnou zapomenout. Navíc to vyžaduje trochu taneček při připojeni na 3.3V systémy a tak jsem se rozhodnul pro ACS711EX Current Sensor Carrier -31A to +31A od Pololu (88 Kč plusminus) a tohle zůstane v šuplíku.
    Reply
    MN Avatar of author Citlivost, chyba? 09/12/2024 18:19
    Dobrý den, V popisu je napsáno citlivost 66–185mV/A, to je dost velká nepřesnost :D Nemělo to být spíše 166-185mV/A?
    PK Avatar of author Připojení vodiče 2,5mm2 22/03/2022 07:53
    Dobrý den, modul používám v MPPT /DC-AC bazmeku na ohřev vody a vodič průřezu 2,5mm2 opravdu nebyl problém. Nepletete si průřez (plochu) s průměrem? Vodič průměru kolem 2,5mm tam opravdu dostat nejde. Průměr vodiče pro 2,5mm2 je 1.8mm zatímco průměr 2,5mm (spíše 2,8mm2) je průřez6mm2.
