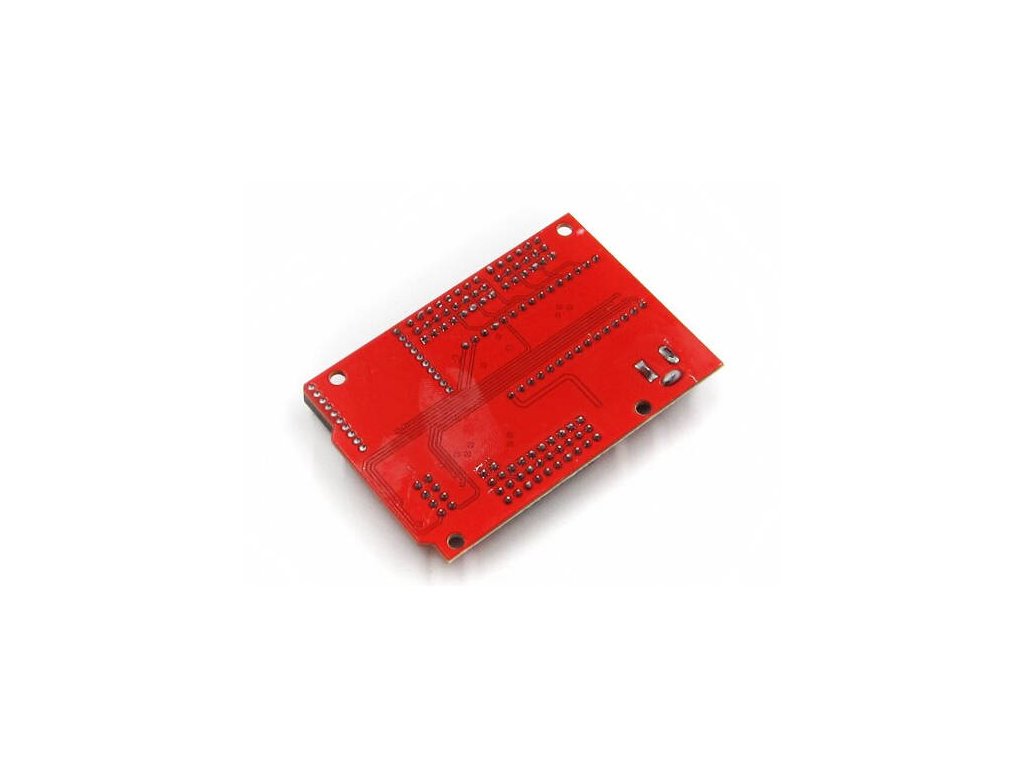

Arduino Nano IO and Wireless Shield
Arduino Nano IO shield is specially designed to facilitate easy connection between Arduino Nano and other wireless devices.
Specifications:
- 14 I/O Pin (servo type with GND, power and signal)
- 8 analogue pins with power and GND
- Power supply
Wireless connectors are available for:
- xBee
- nRF24L01
- I2C for OLED Display or IMU sensor
Included in delivery:
- 1pc Arduino Nano IO and Wireless Shield
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Arduino Nano |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.026 kg |
| Shield function: | Wireless data transfer, Power, Pinout |
5,0
2 ratings
Add a rating
5
4
3
2
1
5
JM
Jiří Macák
Jiří Macák
OK !
5
FJ
Filip Junek
Filip Junek
Funguje dobře, ale chybí datasheet - https://www.electrokit.com/uploads/productfile/41010/ArduinoNanoIOshield.pdf
FJ
nRF24L01
Filip Junek
nRF24L01
Filip Junek
Dobrý den, na jaké piny arduino nano je zapojen header na nRF24L01?
Reply
Reply
MF
nRF24L01
Martin Frajdl
nRF24L01
Martin Frajdl
Dobrý den, propojení pinů je následující:
MI(MISO) = D12(MISO);
IRQ = D2;
SCK = D13(SCK);
MO(MOSI) = D11(MOSI);
CSn = D10 (SS);
CE = D9
