    Home / Data Storage & Transmission / FM radio and MP3 / FM radio 50MHz - 115MHz RDA5807M

    FM radio 50MHz - 115MHz RDA5807M

    Code: LA133000
    1 rating
    Arduino FM tuner 50MHz - 115MHz RDA5807M
    €1,12 €0,93 excl. VAT
    In stock (39 pcs)
    Delivery to:
    14/02/2025

    Miniature radio receiver module between frequencies 50MHz-115MHz. It is able to connect to the board using the I2C bus and on the other side it connects to the amplifier.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

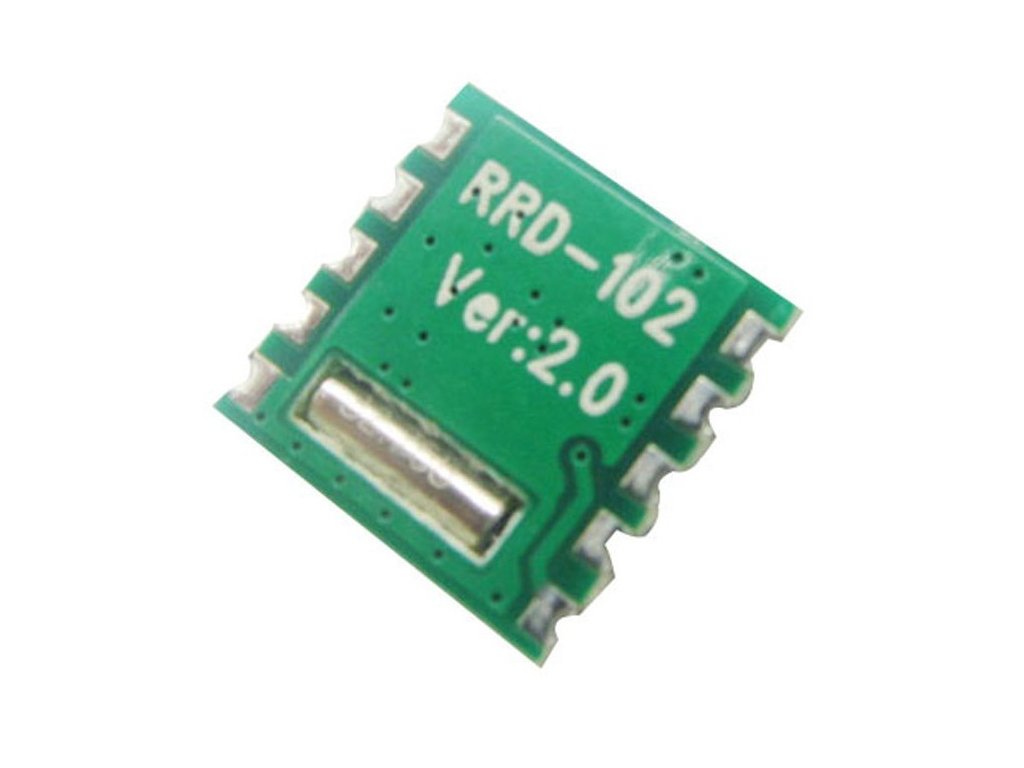

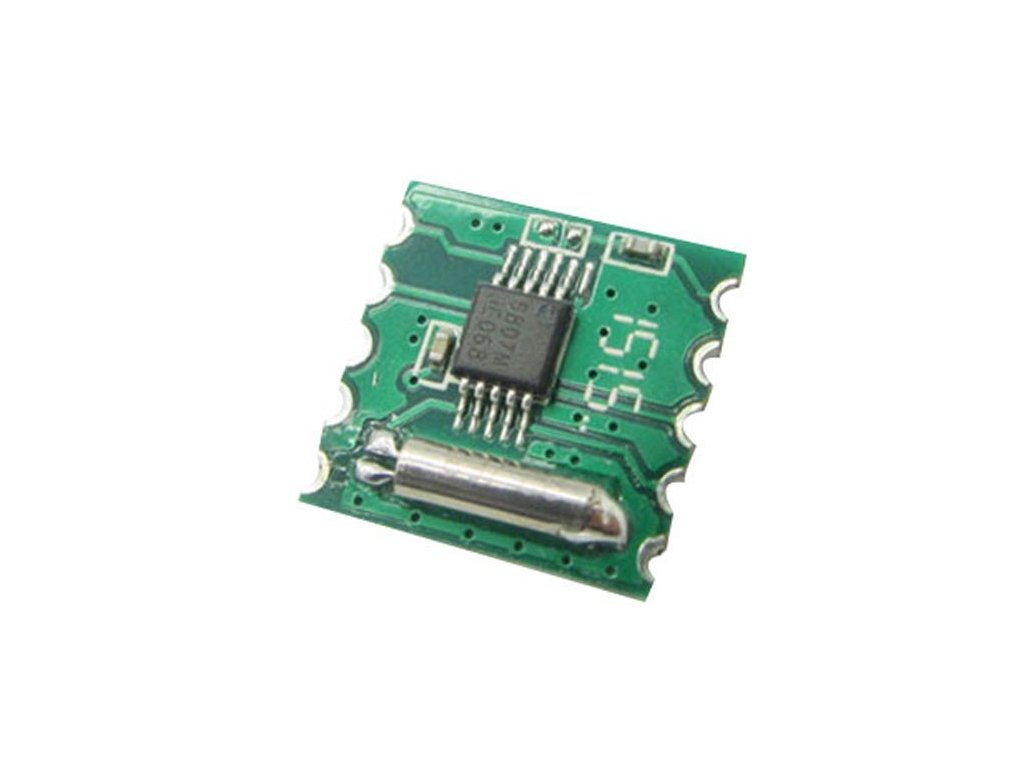

    Miniature complete DSP radio receiver module for FM (50MHz - 115MHz). It is equipped with an RDA5807M integrated circuit - ideal for building a simple digitally controlled radio with Arduino. You connect only two outputs for communication with Arduino, power supply, output to the amplifier (headphones) and a piece of wire as an antenna.

    Specifications:

    • Chip: Philips RDA5807M
    • Frequency range: 50 Mhz to 115 Mhz
    • I2C interface
    • External timing support
    • Power supply: 2.7-3.6V
    • Headphone output
    • Size: 11x11mm

    Included in delivery:

    • 1pc FM radio 50MHz - 115MHz RDA5807M

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: FM radio and MP3
    Warranty: 2 years
    Weight: 0.001 kg
    foto 3
    Ai-Thinker ESP32-S 2.4GHz WiFi+Bluetooth Module
    Vyřazeno
    €2,40 excl. VAT
    €2,90

    Ai-Thinker ESP32-S module with an ESP32 chip that allows it to communicate wirelessly via WiFi and Bluetooth.

    LA100065
    5,0 1 rating
    5
    1x
    4
    0x
    3
    0x
    2
    0x
    1
    0x
    Do not fill out this field:
    5
    MH Avatar of author | 18/01/2021
    Všechno rychle a v pořádku došlo.
    Do not fill out this field:
    T Avatar of author Ladění 24/02/2022 21:10
    Zdravím, nemáte nějaký tip, jak se dostat na frekvence pod 87Mhz? normální rádio (87-108Mhz) na to jde naladit v pohodě, funguje to skvěle ale chtěl bych využít plný rozsah který by to mělo umět... Díky
    Reply
    O Avatar of author Ladění 04/10/2022 09:21
    V registru 03H nastavit bity 3 a 2. Viz katalogový list stránka 9.
    MF Avatar of author Ladění 25/02/2022 11:29
    Dobrý den, bohužel není známo, zda by se dal tento tuner přeladit na nižší frekvence než 50MHz. Ani v datasheetu výrobce o tomto není žádná zmínka.
