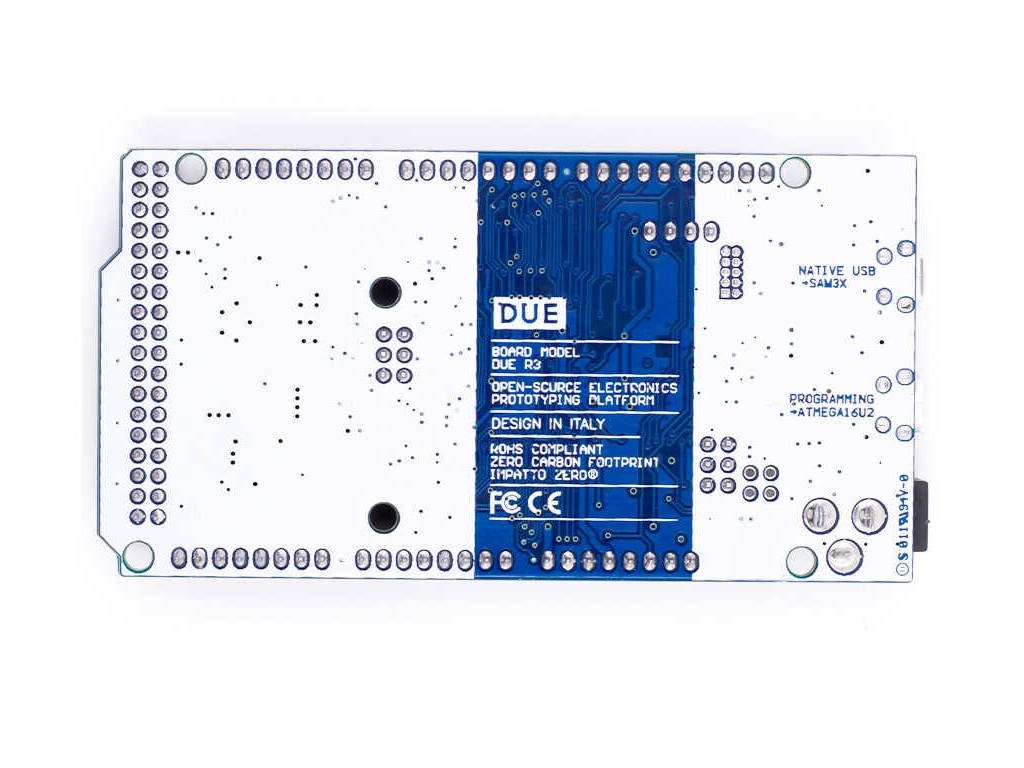

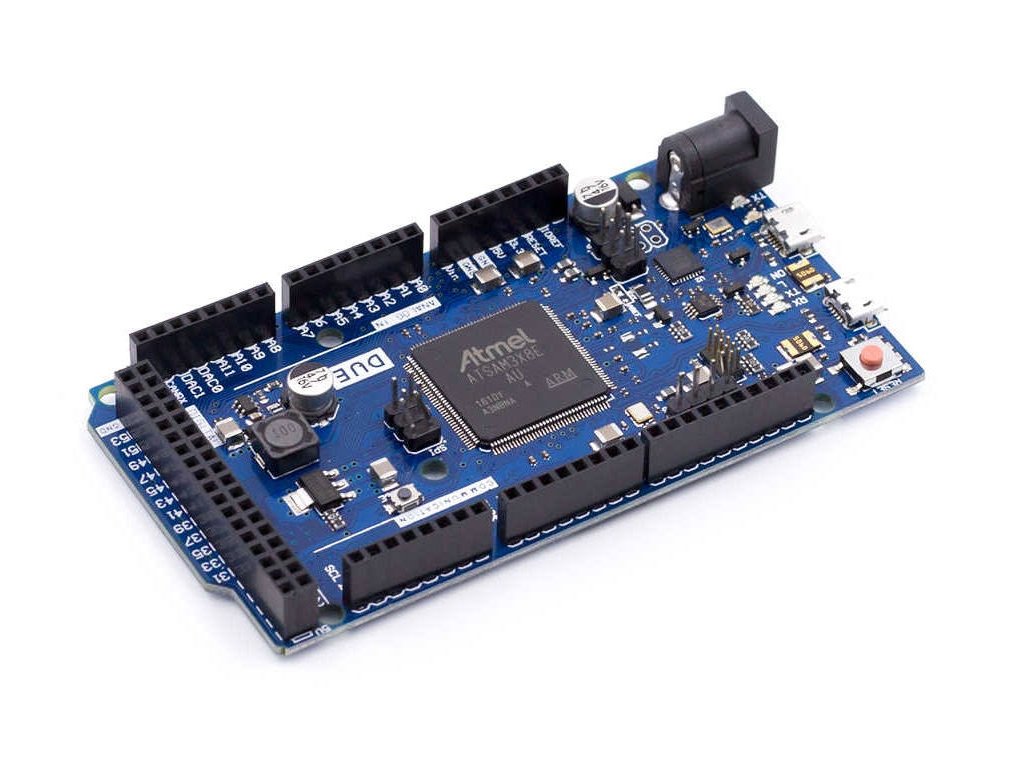

LaskaKit DUE R3 SAM3X8E 32-bit ARM Cortex-M3

Code: LA100047
€47,30 €39,09 excl. VAT
Skladem (4 pcs)
Delivery to:
16/12/2024

A precise clone of the Arduino DUE R3 board, the first Arduino board with a 32-bit ARM microcontroller.

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

Arduino Due is a board based on the Atmel ATSAM3X8EA ARM Cortex-M3 processor. It is the first Arduino board based on a 32-bit ARM core. It has 54 digital input/output pins (12 of which can be used as PWM outputs), 12 analog inputs, 4 UART (hardware serial ports), 84 MHz, USB OTG , 2 DAC (digital analog) 2 TWI, power connector, SPI, JTAG, reset button and erase button.

Unlike most Arduino boards the Arduino Due board runs on 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Voltages higher than 3.3V on any I/O pin can damage the development board.

Specifications:

Microcontroller AT91SAM3X8E
Krystal 84 MHz
Flash 512kB
SRAM 96 KB (divided into 64KB and 32KB)
Max. tolerance of I/O pins 3.3V
USB - Serial Converter ATMEGA16U2-MU
Dimensions 101.5x56mm
Inputs and Outputs
Digital I/O 54
PWM 12
Analog Inputs 12
Analog Output pins 2 (DAC)
Total current on all I/O pins 130mA
Input voltage 6-12V recommended
5V max Current 800mA
3.3V max Current 800mA
Weight 36g

ArduinoDUE-pinout

Delivery components:

  • 1pc LaskaKit DUE R3 SAM3X8E 32-bit ARM Cortex-M3

Remark:

  • Unlike most Arduino boards the Arduino Due board runs on 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Voltages higher than 3.3V on any I/O pin can damage the development board.
  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: ARM Development Boards
Warranty: 2 years
Weight: 0.039 kg
Type: ARM
Logical levels: 3.3V
I/O pins: 54
PWM pins: 12
ADC pins: 12
Frequency: 84 MHz
Flash memory: 512kB
SRAM memory: 96kB
EEPROM memory: Ne
Connector with battery charger: No
Microcontroller: ATsamd21
Converter: Integrated
Bluetooth: No
WiFi: No
