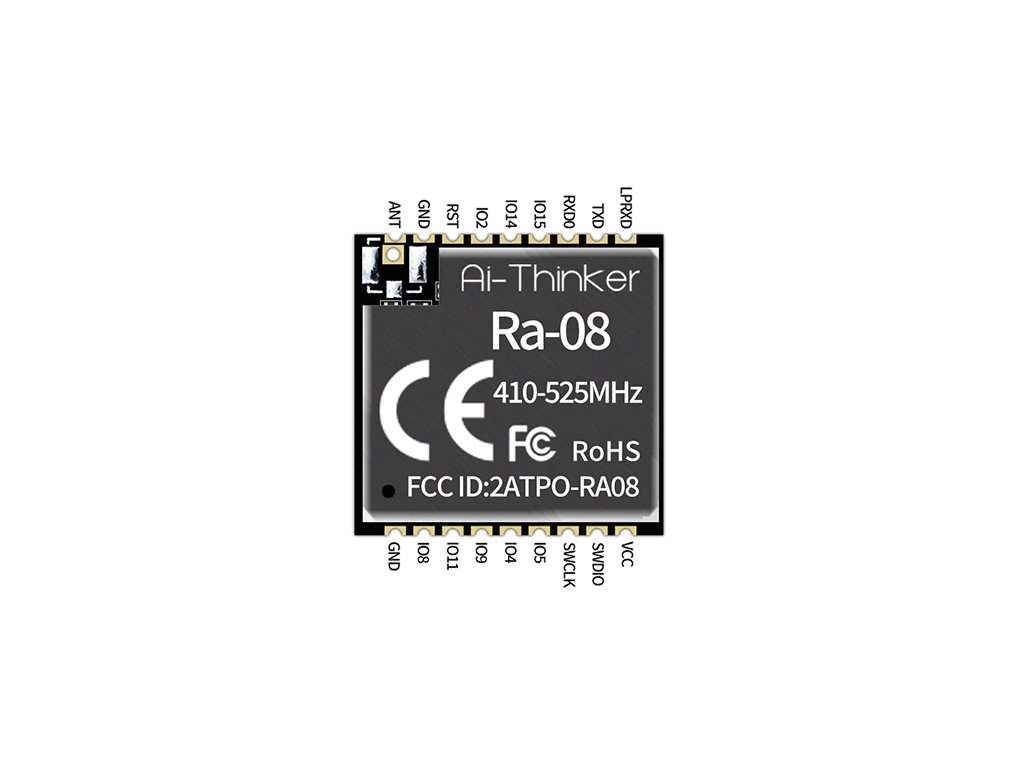

Ai-Thinker RA-08 ASR6601CB 433MHz LoRa module

Code: LA162070
€9,48 €7,83 excl. VAT
Skladem (5 pcs)
Delivery to:
16/12/2024

Ai-Thinker RA-08 ASR6601CB 433MHz LoRa module

Detailed information

Free Shipping
Free Shipping
From 100 EUR
30 Days to Return
30 Days to Return
For Registered
30 Days to Return
30 Days to Return
For Registered Customers
Free Shipping
Free Shipping
For orders from 100 EUR
It Doesn't End With Shipping
Customer Care
We handle complaints within 5 days
Quick dispatch
Quick dispatch
Within 24 hours

Product detailed description

Developed by Ai-Thinker (the manufacturer of the ESP module), this Ra-08 LoRa module is for your IoT long range projects. This module uses the ASR6601CB IO and operates at 410 - 525 MHz.

Specifications:

  • Microprocessor: Arm Cortex-M4 MCU with 128 KB of Flash and 16 KB of SRAM
  • Frequency range: 410 - 525MHz
  • Modulation: LoRa, (G)FSK, BPSK, and (G)MSK
  • Half-duplex SPI Data Interface
  • Tx Power: up to +22dBm
  • Data rate: 62.5 Kbps in LoRa modulation mode, up to 300 Kbps in (G)FSK modulation mode
  • Sensitivity: -138 dBm @ SF12/125KHz
  • Spread spectrum factor - SF5, SF6, SF7, SF8, SF9, SF10, SF11, SF12
  • Peripherals - GPIOs, I2C, I2S, UART, LPUART, SWD, SPI, QSPI and WDG
  • Security - AES, DES, RSA, ECC, SHA and SM2/3/4
  • Operating temperature: -40°C ~+80°C
  • Sleep current: 0.9uA
  • Working voltage: 2.7~3.6V
  • Spacing: 1.27 mm
  • Dimensions: 16x16x3.2m (SMD-18 package)

Included in delivery:

  • 1pc Ai-Thinker RA-08 ASR6601CB 433MHz LoRa module

Remark:

  • This product is not a standalone functional unit and may require professional installation.
  • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

Additional parameters

Category: 433MHz RF Modules
Warranty: 2 years
Weight: 0.002 kg
