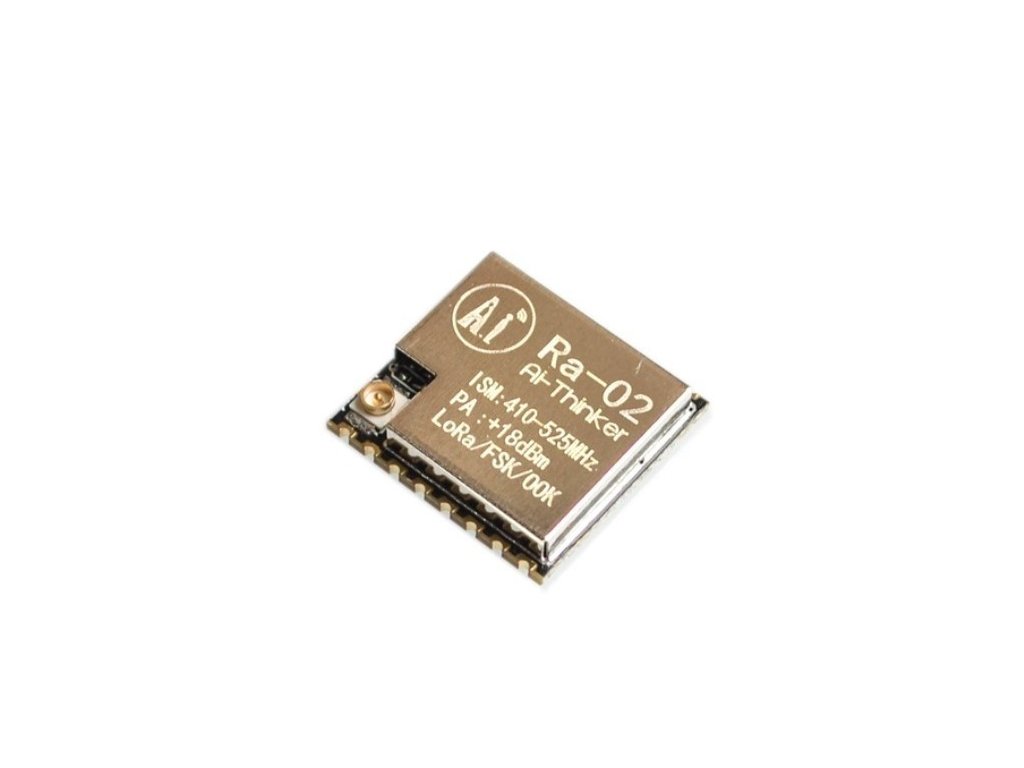

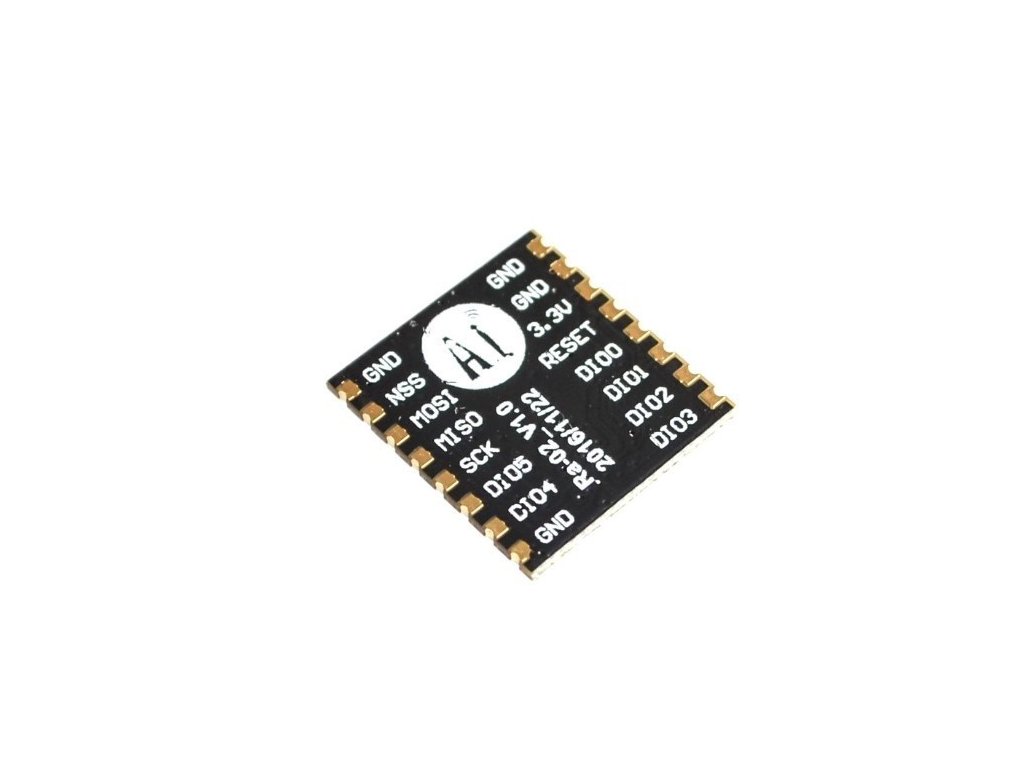

    Ai-Thinker RA-02 SX1278 433MHz LoRa module

    Code: LA162028
    Not rated
    Brand: Ai-Thinker
    Ai-Thinker RA-02 SX1278 433MHz LoRa modul
    €7,49 €6,19 excl. VAT
    In stock (8 pcs)
    Delivery to:
    19/03/2025

    Module for wireless communication on 433MHz frequency with antenna.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Product detailed description

    Developed by Ai-Thinker (an ESP device manufacturer), this Ra-02 LoRa module is for your IoT long range projects. This module uses the SX1278 IO and operates at 433 MHz.

    Specifications:

    • Frequency range: 420 - 450MHz
    • Modulation: FSK, GFSK, MSK, GMSK, LoRaTM and OOK
    • Half-duplex SPI Data Interface
    • Power: +20dBm
    • Data transfer rate: <300 kbps
    • 127dB Dynamic Range RSSI
    • Operating temperature: -40°C ~+80°C
    • Sleep current: 0.2uA
    • Current draw: < 10.8mA(LnaBoost closed, Band 1)
    • Transmit current: < 120mA(+20dBm)
    • Working voltage: 1.8~3.7V
    • Spacing: 2.0 mm
    • Range: 10km


    Included in delivery:

    • 1pc Ai-Thinker RA-02 SX1278 433MHz LoRa module

    Remark:

    • This product is not a standalone functional unit and may require professional installation.
    • Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

    Additional parameters

    Category: 433MHz RF Modules
    Warranty: 2 years
    Weight: 0.002 kg
