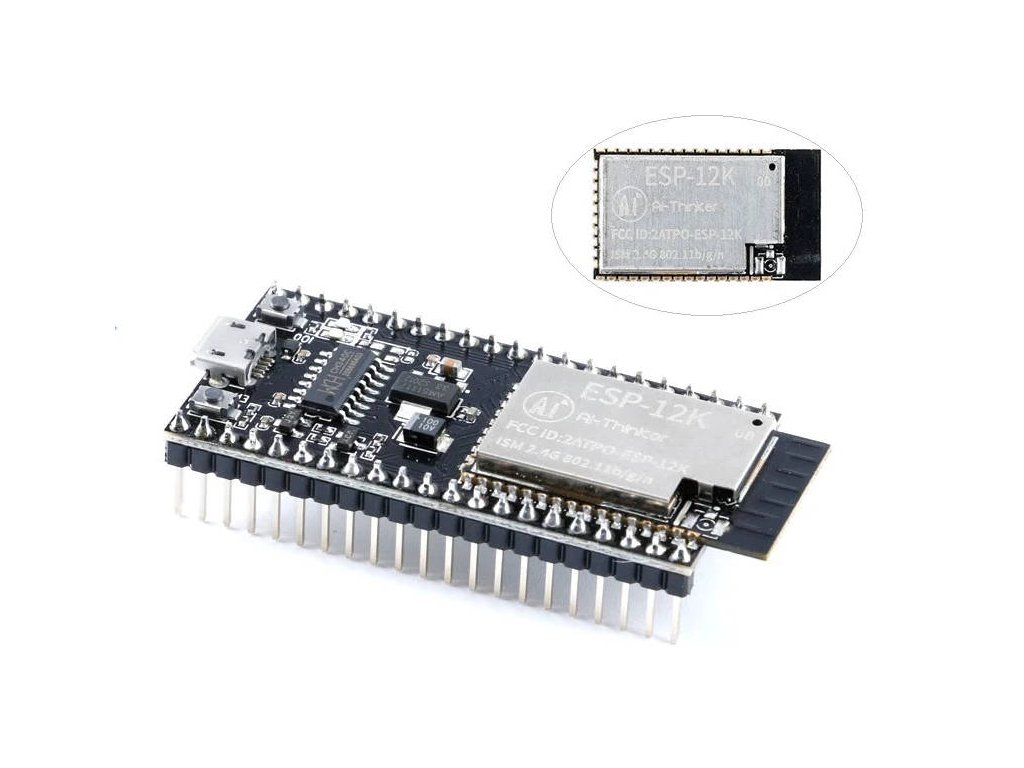

Ai-Thinker NODEMCU-32-S2, ESP-12K, CH340
Code: DD100117
Product detailed description
The board integrates a wireless WiFi module with ESP32-S2 chip and a USB interface from which the module can be powered and programmed. Communication is provided by the CH340 controller. The ESP32-S2 module itself is equipped with a highly integrated and powerful 32-bit microprocessor with many GPIO pins, that can perform the action according to the programmed code even without using the Arduino control.
The board is compatible with Arduino IDE and NodeMCU.
The board has a USB Micro connector and a USB to serial (UART) converter, making it easy to connect this board to your computer using a USB Micro cable.
Specifications (deliberately in the original so that nothing is lost in translation):
| MCU |
- ESP32-S2 embedded, Xtensa® single-core 32-bit LX7 microprocessor, up to 240 MHz |
| Hardware |
- Interfaces: GPIO, SPI, LCD, UART, I2C, I2S, Camera interface, IR, pulse counter, LED PWM, USB |
| WiFi |
- 802.11 b/g/n |
Delivery components:
- 1pc Ai-Thinker NODEMCU-32-S2, ESP-12K, CH340
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | Retired |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.011 kg |
| Type: | ESP |
| Logical levels: | 3.3V |
| I/O pins: | 22 |
| PWM pins: | 22 |
| ADC pins: | 21 |
| Frequency: | 40MHz |
| Flash memory: | 32MB |
| SRAM memory: | 8.3MB |
| EEPROM memory: | Ne |
| Connector with battery charger: | Yes |
| Microcontroller: | ESP32 |
| Converter: | CH340 |
| Bluetooth: | No |
| WiFi: | Yes |
