Ai-Thinker ESP32-S 2.4GHz WiFi+Bluetooth Module
Code: LA100065
Product detailed description
The ESP-32 module itself is equipped with a highly integrated and powerful 32-bit microprocessor with many GPIO pins, that can perform the action according to the programmed code even without using the Arduino control.
The board is compatible with Arduino IDE and NodeMCU.
Specifications(deliberately in the original so that nothing is lost in translation):
| Key Features |
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS Integrated 520 KB SRAM Integrated 802.11 b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP Integrated dual mode Bluetooth (classic and BLE) 4 MB flash, memory-mapped to the CPU code space 2.3V to 3.6V operating voltage -40°C to +125°C operating temperature On-board PCB antenna / IPEX connector for external antenna |
| Sensors |
Ultra-low noise analogue amplifier Hall sensor 10x capacitive touch interfaces 32 kHz crystal oscillator |
| 34x GPIOs |
3 x UARTs, including hardware flow control 3 x SPI 2 x I2S 12 x ADC input channels 2 x DAC 2 x I2C PWM/timer input/output available on every GPIO pin OpenOCD debug interface with 32 kB TRAX buffer SDIO master/slave 50 MHz Supports external SPI flash up to 16 MB SD-card interface support |
|
Security Related |
WEP, WPA/WPA2 PSK/Enterprise Hardware accelerated encryption: AES/SHA2/Elliptical Curve Cryptography/RSA-4096 |
| Performance |
Supports sniffer, Station, SoftAP and Wi-Fi direct mode Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n Minimum receiver sensitivity of -98 dBm 135 Mbps UDP sustained throughput 5 µA power consumption in deep sleep |
Programming language
- Wiring with Processing IDE(reference)
- Multiplatform development environment (Win/Linux/Mac/...)
Included in delivery:
- 1pc Ai-Thinker ESP32-S 2.4GHz WiFi+Bluetooth Module
Notice:
This is a 3.3V device. If you plug it into 5V digital sensors or devices, you may need a low-level converter like our 4-channel or 8-channel converter modules.
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

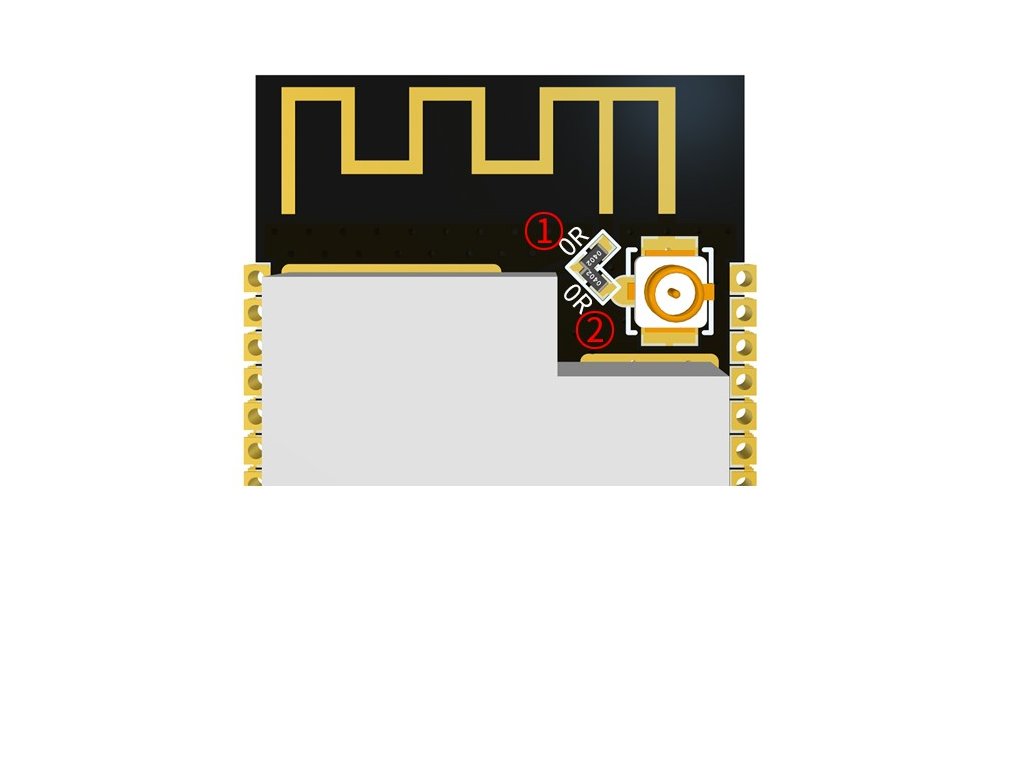

- To use the external antenna you need to disconnect the jumper from the position for the internal antenna and connect it to the position for U.FL connector. Without this modification, the connector is not plugged in and the external antenna will not work!
Additional parameters
| Category: | Development Boards |
|---|---|
| Warranty: | 2 years |
| Weight: | 0.002 kg |
| Type: | ESP |
| Logical levels: | 3.3V |
| I/O pins: | 34 |
| PWM pins: | 34 |
| ADC pins: | 12 |
| Frequency: | 40MHz |
| Flash memory: | 4MB |
| SRAM memory: | 520kB |
| EEPROM memory: | Ne |
| Connector with battery charger: | No |
| Microcontroller: | ESP32 |
| Converter: | No |
| Bluetooth: | Yes |
| WiFi: | Yes |
