Ai-Thinker ESP-01M ESP8285 WIFI module + Adapter

Product detailed description

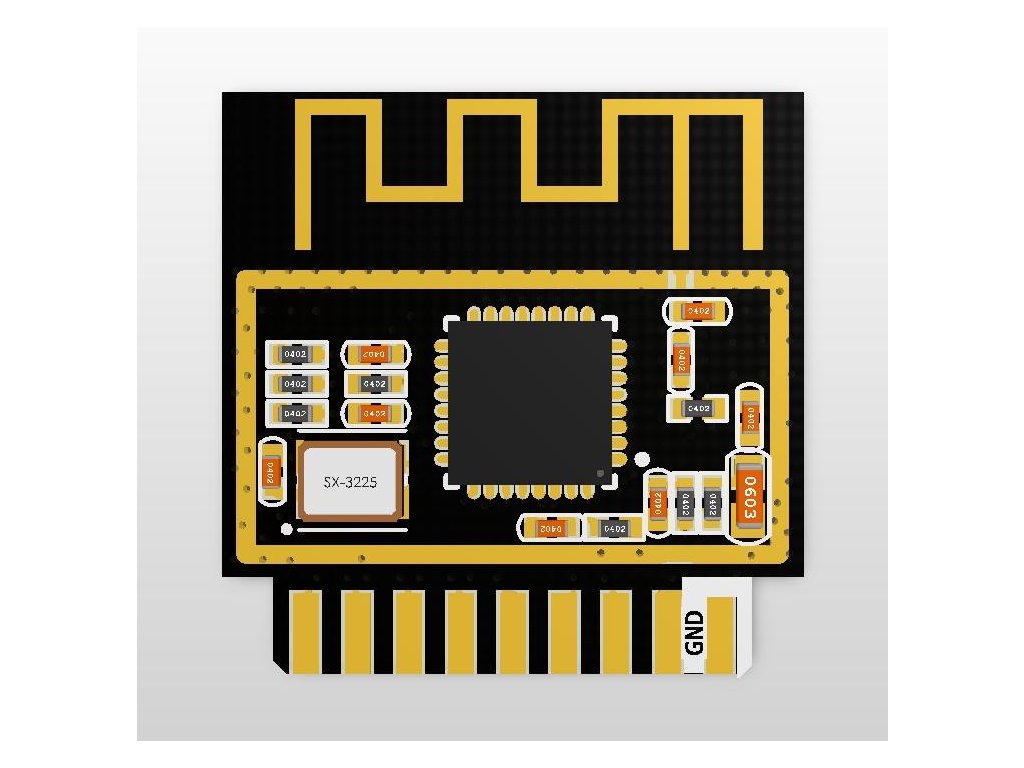

The ESP-01M is a WiFi module based on the ESP8285, with built-in 8Mbit Flash, in a small DIP housing. In short, it's a very small (fingernail size) and fairly efficient WiFi module.

Specifications:

• The smallest 802.11b/g/n Wi-Fi SoC module
• Uses low power 32bit CPU and compatible with application processor
• Main frequency up to 160MHz
• Built in 10Bit high precision ADC
• Support UART/GPIO/PWM/ADC interface
• Integrate Wi-Fi MAC/BB/RF/PA/LNA
• Support multiple sleep modes
• Standby power consumption as low as 1.0mW
• Embedded Lwip protocol stack
• Support STA/AP/STA+AP work model
• Support Smart Config/AirKiss
• Series Rate up to 4Mbps
• Universal AT instruction
• Support serial local upgrade and remote firmware upgrade
• Small size 18*18*2.8mm

Included in delivery:

• 1pc Ai-Thinker ESP-01M ESP8285 WIFI module

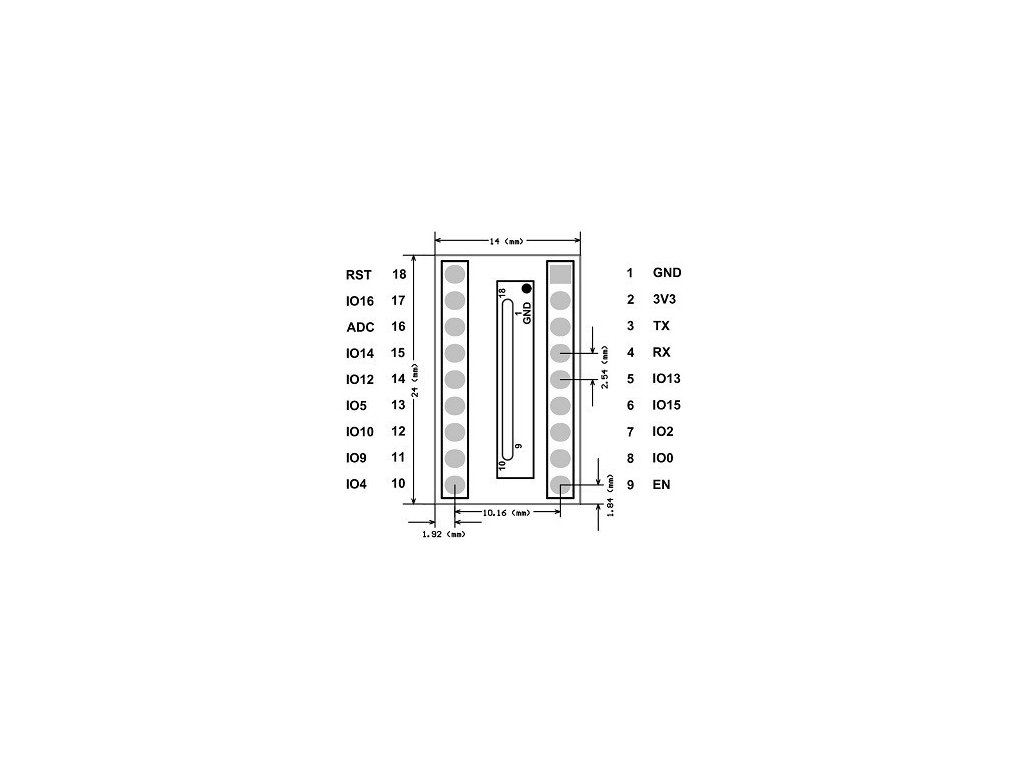

• 1pc Adapter

Remark:

• It's a 3.3V device. If you plug it into 5V digital sensors or devices, you may need a low level converter like our 4-channel or 8-channel converter modules.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
