Ai-Thinker ESP-01F ESP8285 WIFI module

Product detailed description

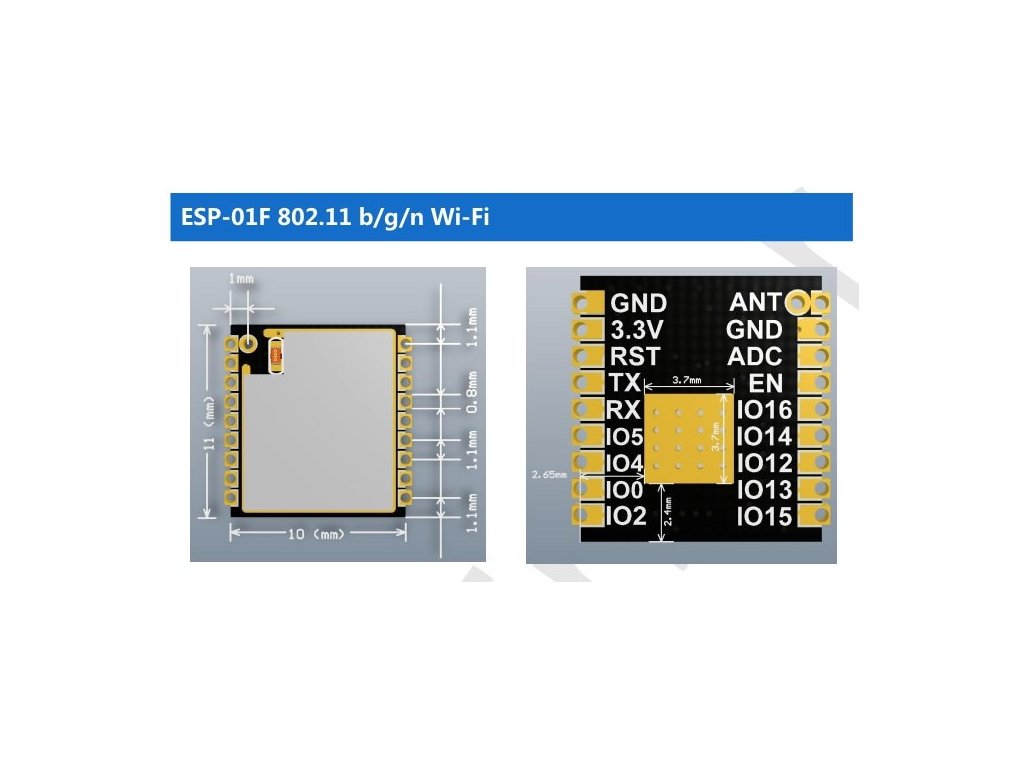

The ESP-01F is a WiFi module based on the ESP8285, with built-in 8Mbit Flash, in a small SMD18 housing. In short, it's a very small (fingernail size) and fairly efficient WiFi module.

Specifications:

• 802.11b/g/n Wi-Fi SOC
• Integrated Tensilica L106 ultra-low-power 32-bit micro MCU, run at 80 MHz and 160 MHz frequency, supports RTOS
• Built-in 1-ch 10 bit high precision ADC
• Supports UART/GPIO/ADC/PWM/I2C
• SMD18 package
• Integrated Wi-Fi MAC/ BB/RF/PA/LNA
• Supports multi sleep modes, deep sleep current as low as 20uA
• UART baudrate up to 4Mbps
• Embedded Lwip protocol stack
• Supports STA/AP/STA+AP operation mode
• Supports Smart Config (APP) / AirKiss (WeChat), one key networking
• Supports UART local firmware upgrade and/or remote firmware upgrade (FOTA)
• AT commands for getting started fast
• Supports secondary development, integrated Windows/Linux environment

Included in delivery:

• 1pc Ai-Thinker ESP-01F ESP8285 WIFI module
• 1pc Antenna

Remark:

• It's a 3.3V device. If you plug it into 5V digital sensors or devices, you may need a low level converter like our 4-channel or 8-channel converter modules.
• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
