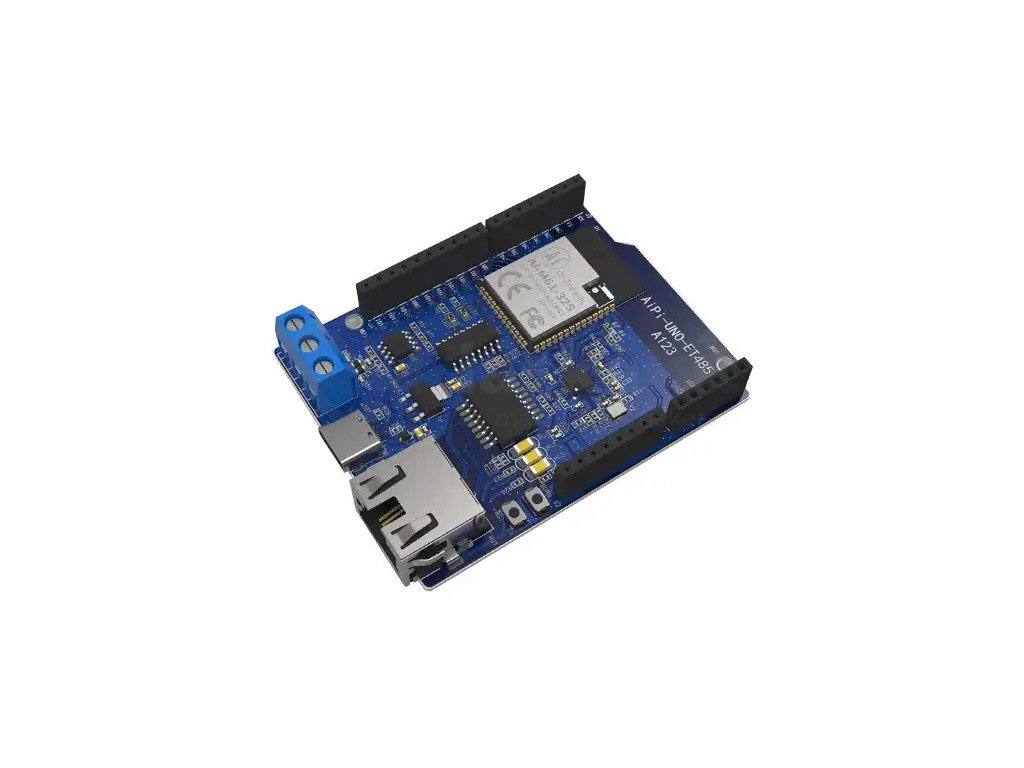

Ai-Thinker AiPi-UNO-ET485 2.4GHz WiFi Module with RS485 and Ethernet

Product detailed description

AiPi-UNO-ET485 is a Arduino format development board designed by Ai-Thinker company team for Ai-M61-32S, supports development in Aruino IDE, adopts classic Arduino UNO board design, with Ethernet ICs, RS485 interfaces and CH340C converter. The Ai-M61-32S module has a wealth of peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO and more.

Ai-M61-32S is a Wi-Fi 6 + BLE5.3 module developed by Shenzhen Ai-Thinker Technology Co., Ltd. The module features the BL618 chip as the main processor, supports Wi-Fi 802.11b/g/n/ax and BLE protocol, and also supports Thread protocol. The BL618 system includes a low power 32-bit RISC-V CPU with a floating point unit, DSP unit, cache and memory with a maximum dominant frequency of 320M. To add support to the Arduino IDE, use JSON: https://github.com/bouffalolab/arduino-bouffalo/releases/latest/download/package_bouffalolab_index.json

Specifications:

• Module: Ai-Thinker Ai-M61-32S (Bouffalo Lab BL 618 )
• Dimensions: 40x27mm

Available GPIOs:

Included in delivery:

• 1pc Ai-Thinker AiPi-UNO-ET485 2.4GHz WiFi Module with RS485 and Ethernet

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
