Ai-Thinker AiPi-Cam-D200 2.4GHz WiFi Module with camera

Product detailed description

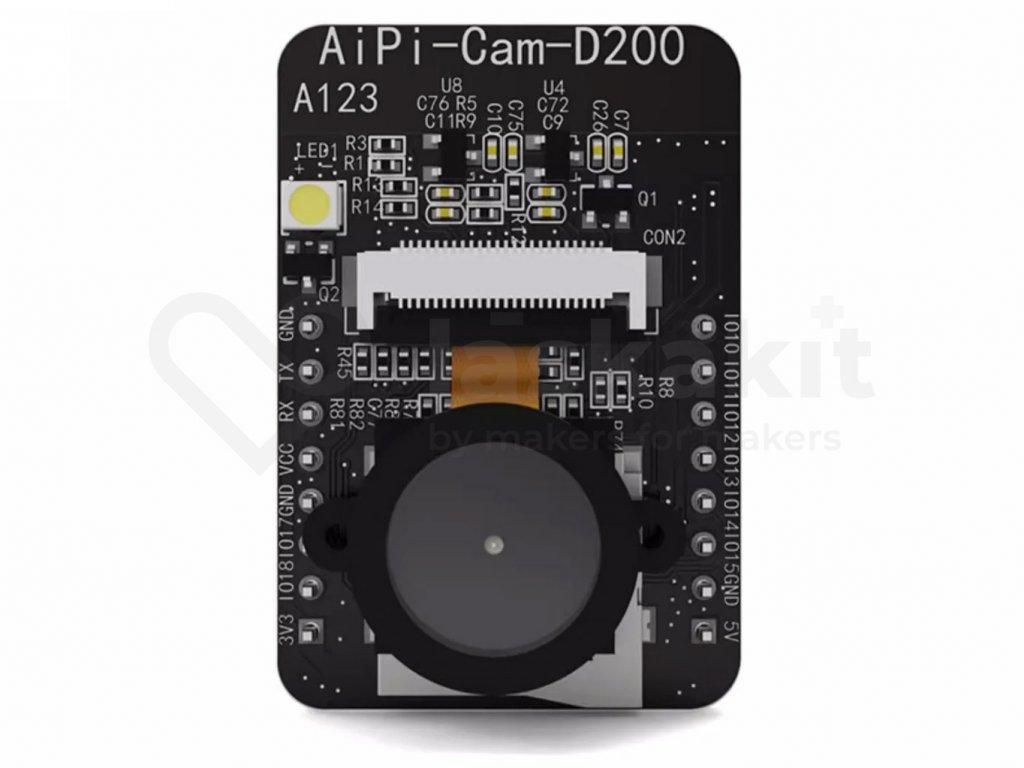

AiPi-Cam-D200 is a camera module designed by Ai-Thinker for high performance modular designs like Ai-M61-32S. This module is fully compatible with the Ai-WB1-32S-CAM and includes a TF card holder, adding this feature to previous models. The AiPi-Cam-D200 accesses the camera with 200W pixel resolution as standard and routes out all unused pins for easy development.

Instructions: turn on (pins VCC and GND), connect to the hotspot using a mobile phone or computer: AiPi_Cam_D200, password: 12345678, open the web page and enter 192.168.169.1, click on Start stream and see if the camera image is available.

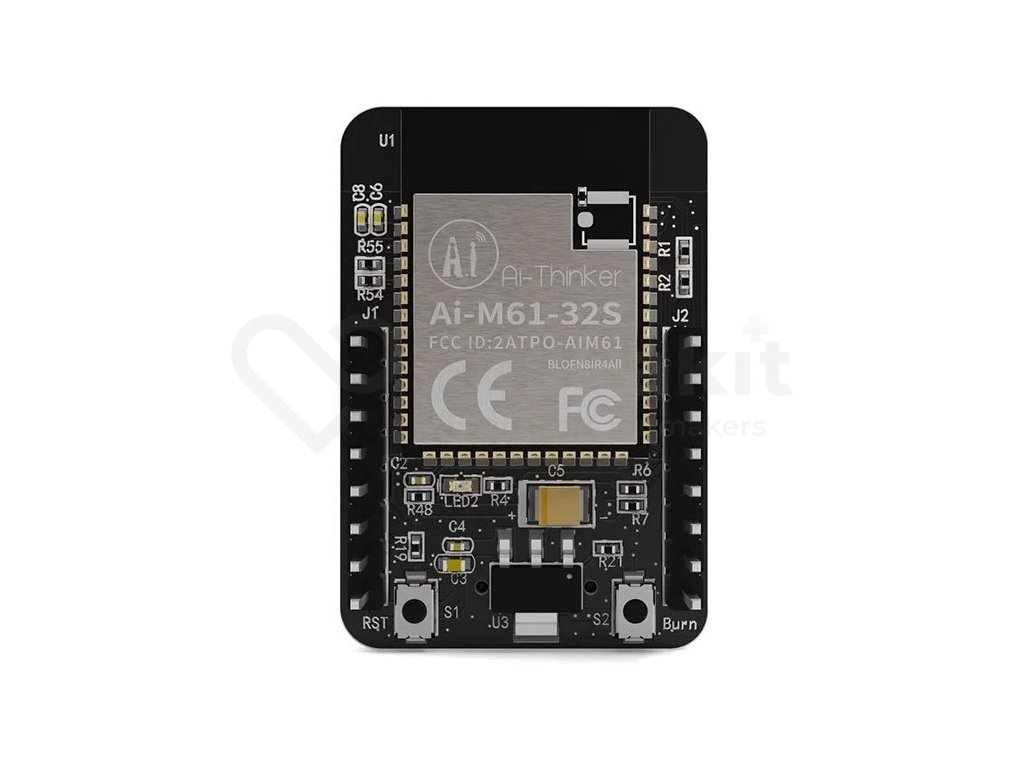

Ai-M61-32S is a Wi-Fi 6 + BLE5.3 module developed by Shenzhen Ai-Thinker Technology Co., Ltd. The module features the BL618 chip as the main processor, supports Wi-Fi 802.11b/g/n/ax and BLE protocol, and also supports Thread protocol. The BL618 system includes a low power 32-bit RISC-V CPU with a floating point unit, DSP unit, cache and memory with a maximum dominant frequency of 320M. To add support to the Arduino IDE, use JSON: https://github.com/bouffalolab/arduino-bouffalo/releases/latest/download/package_bouffalolab_index.json

Specifications:

• Module: Ai-Thinker Ai-M61-32S (Bouffalo Lab BL 618 )
• Dimensions: 40x27mm
• Camera:
  • Model: GC2145
  • Dimensions: 13x13x21.57mm (without cable)
  • Pixel size: 1600x1200
  • Viewing angle: 140°
  • Focal length: 2 meters
  • Power consumption: 180mA (<200uA)
  • Interface:DVP (24pin pitch 0.5 mm)

Included in delivery:

• 1pc Ai-Thinker AiPi-Cam-D200 2.4GHz WiFi Module
• 1pc Camera OV2640

Remark:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
