Product detailed description

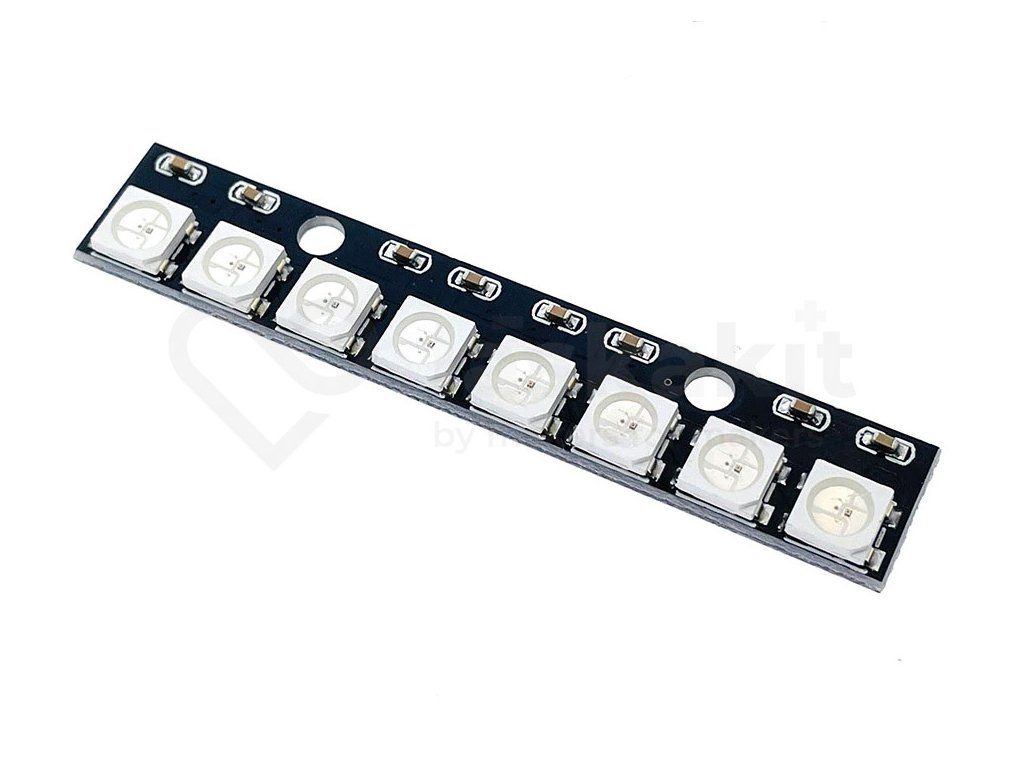

This LED strip consists of WS2812B LEDs connected in series. These LEDs have a built-in chip with 3 bytes of memory. These adjust the intensity of the light of each of the three colours. This allows communication via a single channel interface. So it means that you can drive a lot of LEDs using a single digital pin of your Arduino.
Specifications:
| Power | 5V |
| Current | 3x20mA / 1pcs LED - total approx. 480mA |
| Current at zero light | 1mA/ 1pcs LED - total approx. 8mA |

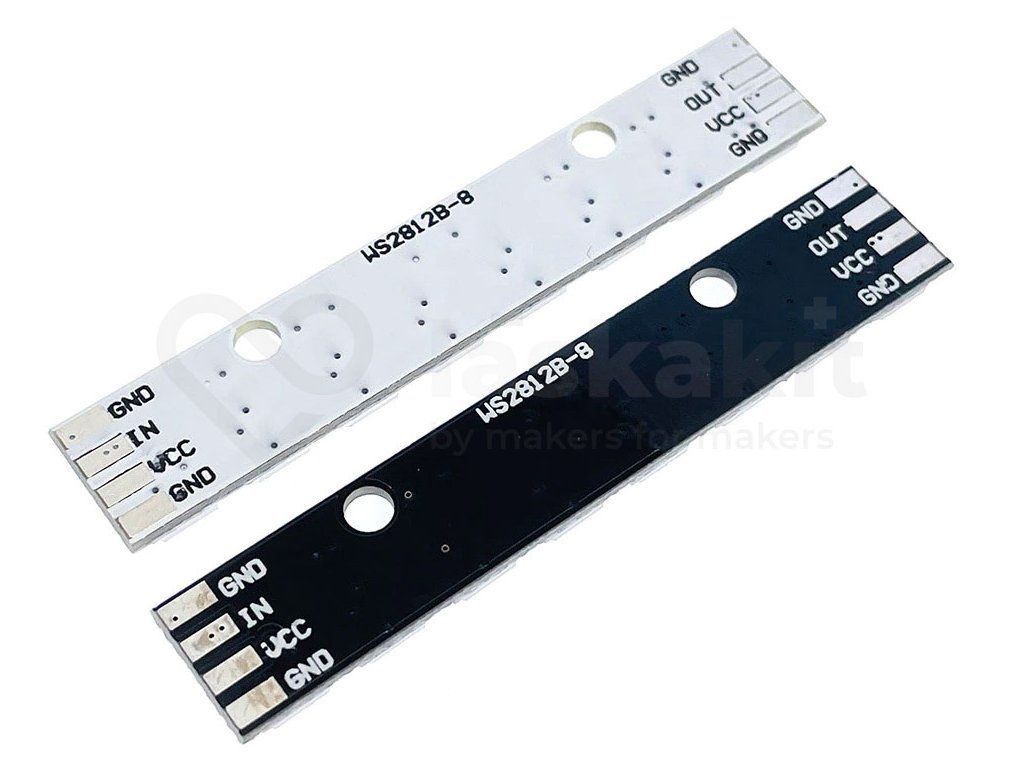

| Number of outlets | 4 (VCC, GND, DO, DI) |
| Protocol | 24 bits (3x8 RGB) |
| Dimensions | 57x10x3mm |
Included in delivery:
- 1pc 8x intelligent RGB LED NeoPixel strip, WS2812B, 5050, 5V
Remark:
- This product is not a standalone functional unit and may require professional installation.
- Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
Additional parameters
| Category: | LED and neon modules |
|---|---|
| Warranty: | 2 years |
-
LED NeoPixel – jak na ně s Arduinem
-
Adafruit NeoPixel Knihovna
-
LEDStrip effects for NeoPixel
-
WS2812 Datasheet (271.8 kB)
