    3.5" 320x480 TFT display, ILI9486, Arduino Mega shield

    Code: LA141015
    5 ratings
    875 1 3 5 320x480 tft displej ili9486 arduino mega shield
    €19,03 €15,73 excl. VAT
    Momentálně nedostupné
    The item has been sold out…

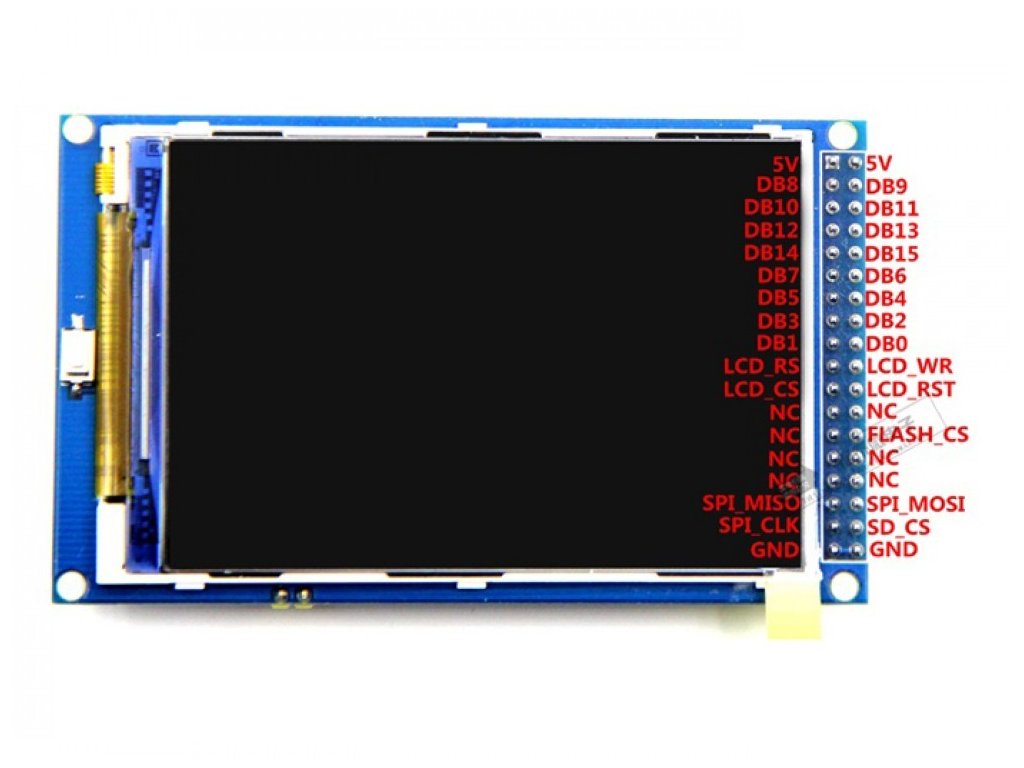

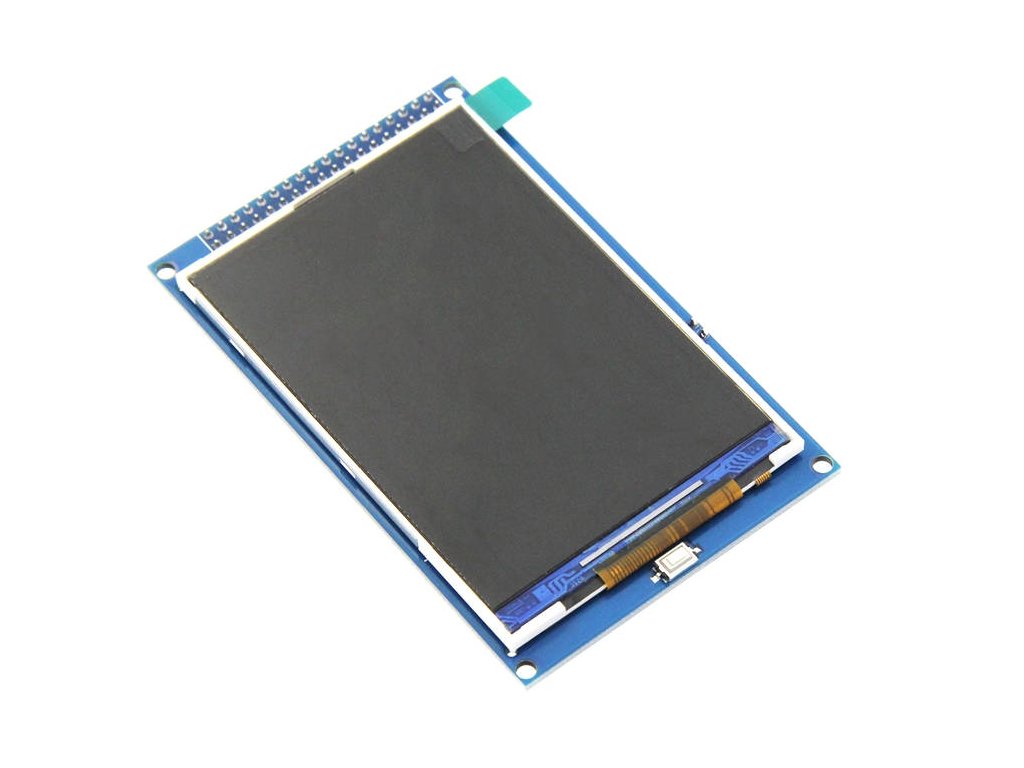

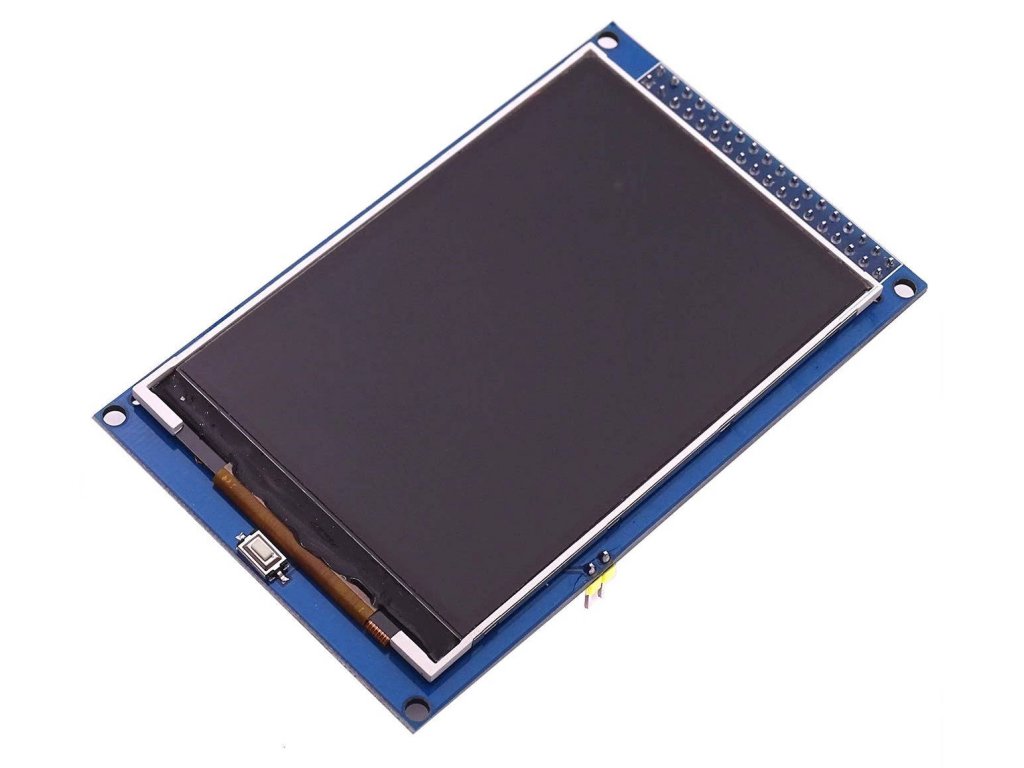

    3.5" LCD TFT display with 320x480 color pixels communicating using a parallel interface in the form of a shield for the Arduino Mega board.

    Detailed information

    Free Shipping
    Free Shipping
    From 100 EUR
    30 Days to Return
    30 Days to Return
    For Registered
    30 Days to Return
    30 Days to Return
    For Registered Customers
    Free Shipping
    Free Shipping
    For orders from 100 EUR
    It Doesn't End With Shipping
    Customer Care
    We handle complaints within 5 days
    Quick dispatch
    Quick dispatch
    Within 24 hours

    Related products

    foto 3
    Ai-Thinker ESP32-S 2.4GHz WiFi+Bluetooth Module
    Skladem (3 pcs)
    €2,39 excl. VAT
    €2,89

    Ai-Thinker ESP32-S module with an ESP32 chip that allows it to communicate wirelessly via WiFi and Bluetooth.

    LA100065

    Product detailed description

    3.5" 320x480 TFT display, ILI9486, Arduino Mega shield

    This amazing display is the best way to add a fairly large, colorful and bright display to your project with the Arduino Mega.

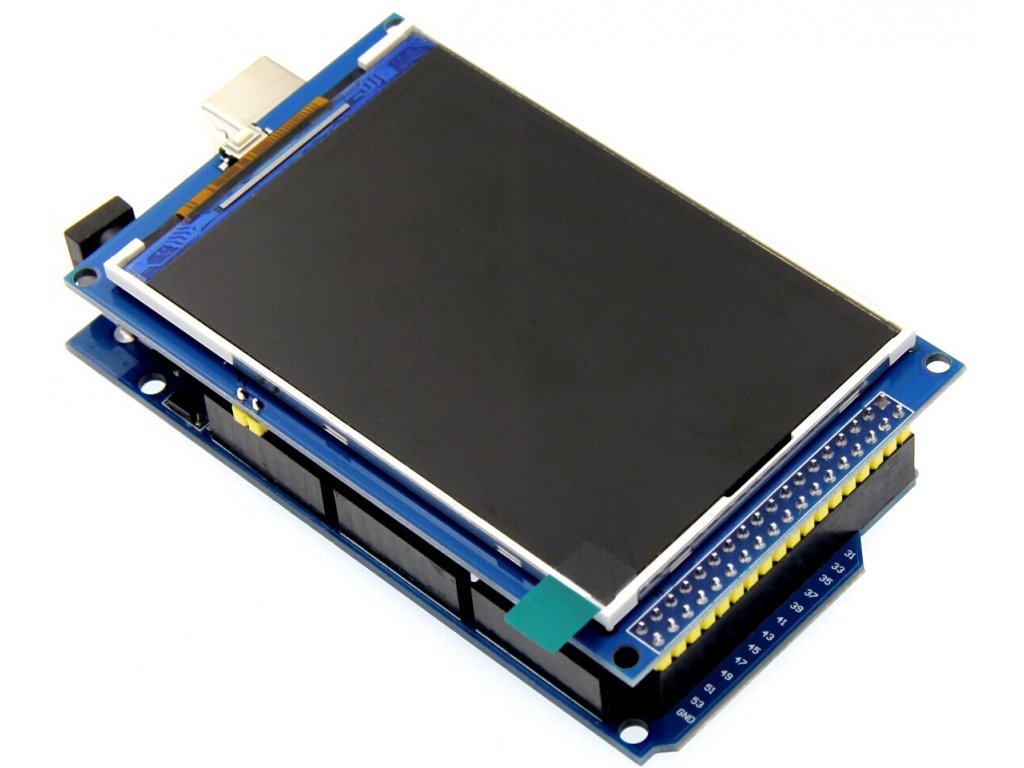

    You can put this shield directly on the Arduino Mega, no converter or adapter is needed.

    Specifications:

    • Display size: 3.5"
    • Touch panel: NO

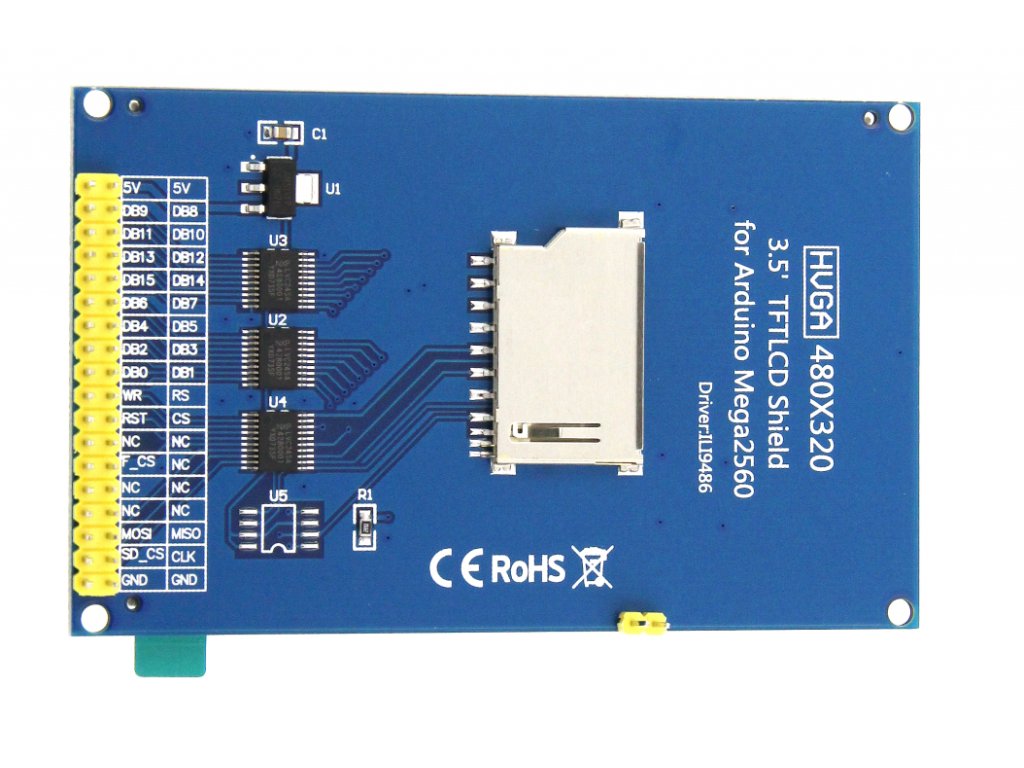

    • Integrated SD card slot
    • Integrated 5V to 3.3V logic converter
    • Resolution: 480x320 pixels
    • Colors: 18-bit (262,144 colors)
    • Driver: ILI9486
    • Type of backlight: white LED

    Included in delivery:

    • 1pc 3.5" 320x480 TFT display, ILI9486, Arduino Mega shield

    Remark:

    • This product is not a self-contained functional unit and may require professional installation
    • This display is not touch screen!
    • After mounting the shield, please check that the pins from the bottom side do not touch the component housings on the bottom plate! This could cause a short circuit and destroy the shield or even the motherboard. Such damaged goods are not covered by the warranty!

    Sources:

    Additional parameters

    Category: TFT LCD Displays
    Warranty: 2 years
    Weight: 0.04 kg
    Shield function: Display, Data storage
    The item has been sold out…
    LaskaKit live 12 48 e paper stavebnice s wifi pro zivy obraz wall
    LaskaKit Live-12.48 E-paper kit with WiFi for "Live Image"
    Momentálně nedostupné
    €245,09 excl. VAT
    €296,56

    Build your own "Living Picture"! Get a smart e-Paper display that communicates with the Live Image server via Wi-Fi to get almost any information you want. The kit also includes...

    LA180016L
    LaskaKit omg roboticke auticko 1
    OMG Robot car
    Skladem (5 pcs)
    from €55,88 excl. VAT
    from €67,61

    A stylish little car with which you'll have loads of fun. The Robotic Car is composed of 3D printed parts that were designed by the OMG Robotics team for the best driving...

    LA180060N
    LasKKit sada tranzistorů TO-92 300ks
    LaskaKit TO-92 transistor set 300 pcs
    Skladem (5 pcs)
    €8,16 excl. VAT
    €9,87

    This is the perfect kit for any tinkerer or electrical enthusiast! You'll find 300 pieces of various transistor types in the popular TO-92 package, which fits perfectly into...

    LA180022
    Show all alternative products
    5,0 5 ratings
    5
    5x
    4
    0x
    3
    0x
    2
    0x
    1
    0x
    Do not fill out this field:
    5
    BG Avatar of author | 21/08/2023
    Po připojení k MEGA2560 plně funkční. Díky.
    5
    JŠ Avatar of author | 07/08/2023
    Displej funguje dobře, zkoušeno s knihovnou UTFT. Ale pozor - i u příkladu je chybná konfigurace na řádku 32, původní: UTFT myGLCD(CTE32HR,38,39,40,41); je třeba zaměnit za : UTFT myGLCD(CTE40,38,39,40,41); V prvním případě je zobrazen veškerý text zrcadlově obráceně. Knihovna UTFT web: http://www.RinkyDinkElectronics.com/ obsahuje množství fontů, také je zde třeba Image Convertor.
    5
    JU Avatar of author | 18/10/2022
    Naprostá spokojenost
    5
    JV Avatar of author | 30/11/2020
    Spokojenost - naprostá
    5
    Avatar of author | 17/11/2020
    S displejem jsem spokojen. Akorát se softwarem LCDWIKI moc ne. Buď si zvyknu, nebo si asi budu muset udělat ovladač sám. Protože jiná knihovna asi k takovému displeji není. Jestli někdo nějakou jinou zná, tak to může sem napsat.
    Do not fill out this field:
    JŠ Avatar of author Bastlení zdar 08/12/2023 12:51
    Displej skutečně jen zasunout na Mega a funguje. Jenom stáhnout knihovnu, pokud se Vám podaří nějakou se kterou funguje najít. Nebylo by vhodné i pro zvýšení prodeje zveřejnit odkaz na stažení, nebo přímo celou knihovnu? Taky zdůraznit, že je to pouze displej bez dotykové vrstvy. Jinak co se týče obchodu, perfektní a rychlý v dodání, v pondělí objednáš a ve středu to máš.
