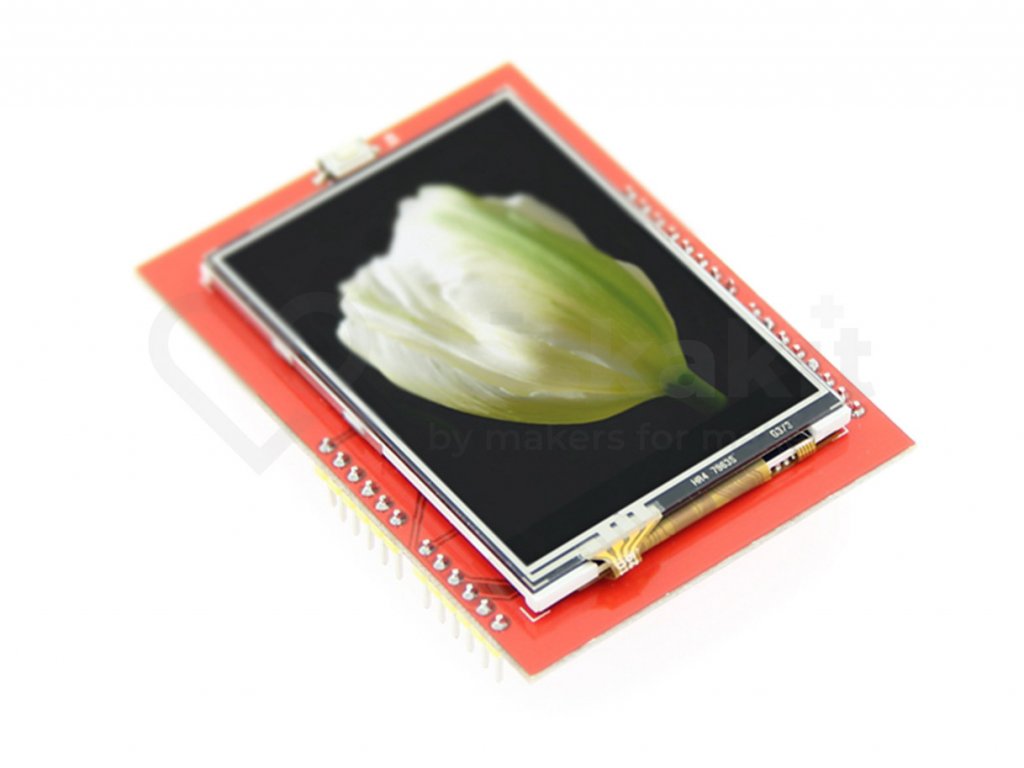

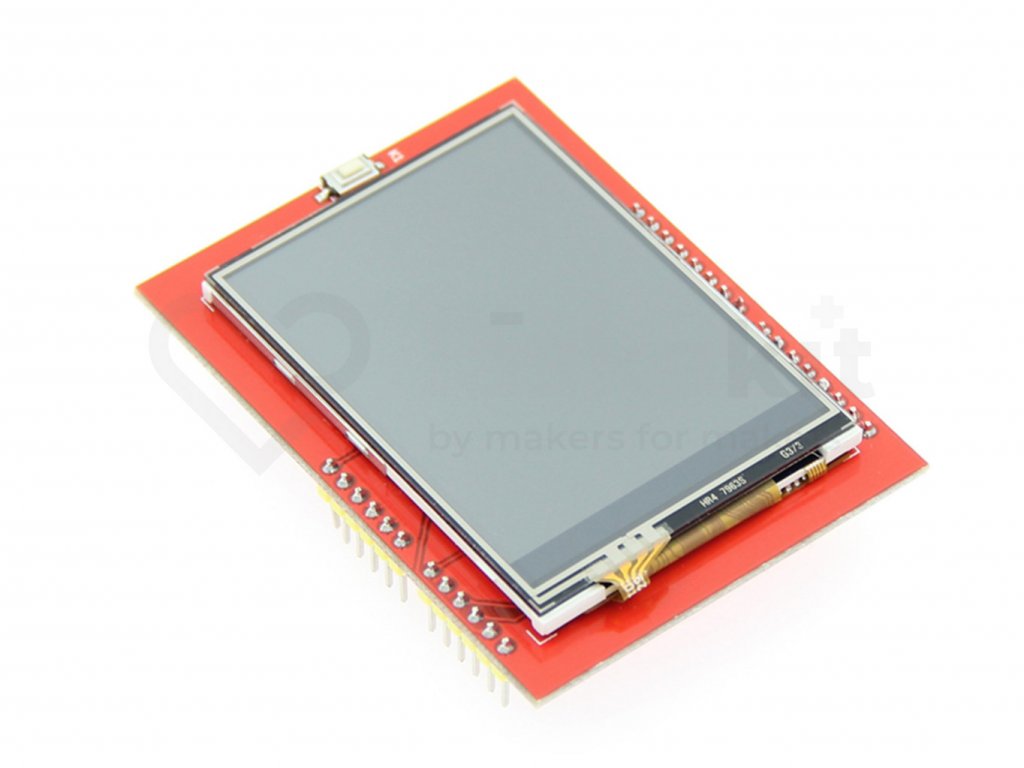

2.4" 320x240 TFT display ST7789, shield Arduino Uno

Product detailed description

This amazing display is the best way to add a fairly large, colorful and bright display to a Arduino Uno project.

You can put this shield directly on Arduino Uno or Mega, no converter or adapter is needed.

It works with the MCUFRIEND_kvb library without any problems, you can use the example: diagnose_TFT_support.ino on UNO and MEGA2560

Specifications:

• Display size: 2.4"
• Touch panel: 4 Wire Resistive Touchscreen
• Integrated SD card slot
• Resolution: 240x320 points
• Colors: 65k
• Driver: ST7789
• Type of backlight: white LED

Included in delivery:

• 1pc 2.4" 320x240 TFT display ST7789, shield Arduino Uno

Remark:

• This product is not a self-contained functional unit and may require professional installation
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.

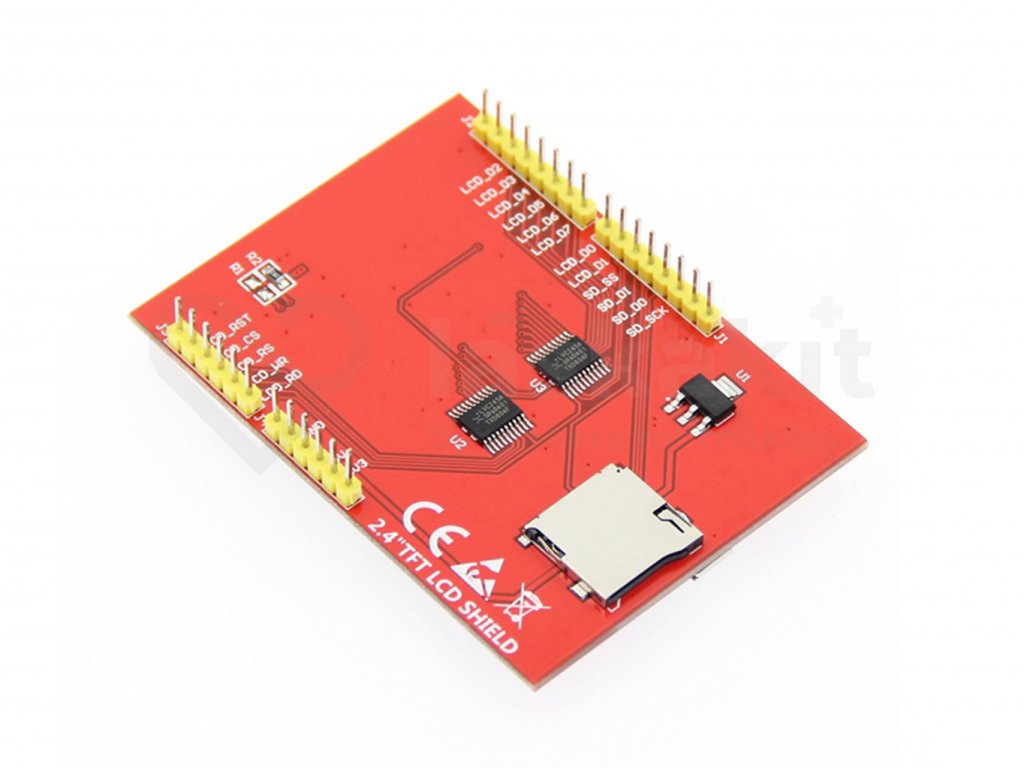

• The SD card reader is powered from the 3.3V branch, but the data pins themselves are connected without a logic level converter directly to the Arduino data pins, i.e. to 5V logic! Use of the SD card is therefore at your own risk!
• After mounting the shield, please check that the pins from the bottom side do not touch the component housings on the bottom plate! This could cause a short circuit and destroy the shield or even the motherboard. Such damaged goods are not covered by the warranty!
