16-channel 12V relay module 250VAC 10A, RS485, DIN

Product detailed description

The module is equipped with 16 separate relays that can be controlled via RS485 line using Modbus RTU protocol or by AT commands. In the case of the Modbus RTU protocol, up to 64 of these modules can be controlled over two RS485 line wires. The module address can be set using the DIP switches on the board. In case of using AT commands, only one can be controlled. Individual relays can not only be switched on and off, but can also be switched with a delay, set the number of repeated switching on/off, switch the relay only on a short pulse and more.

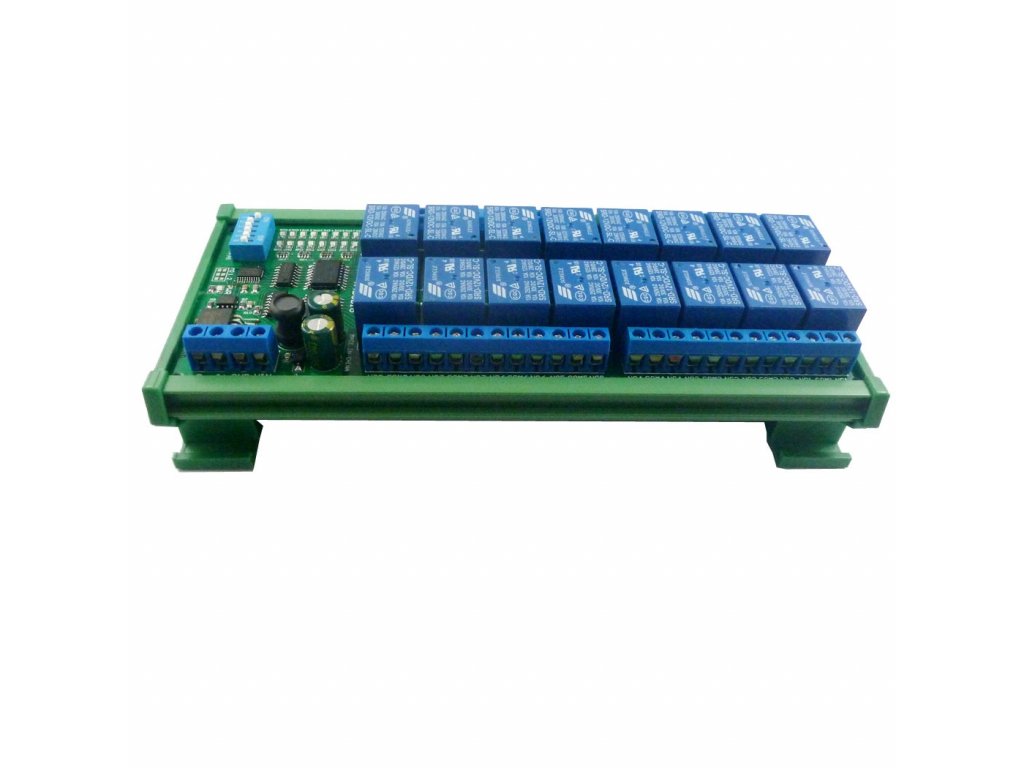

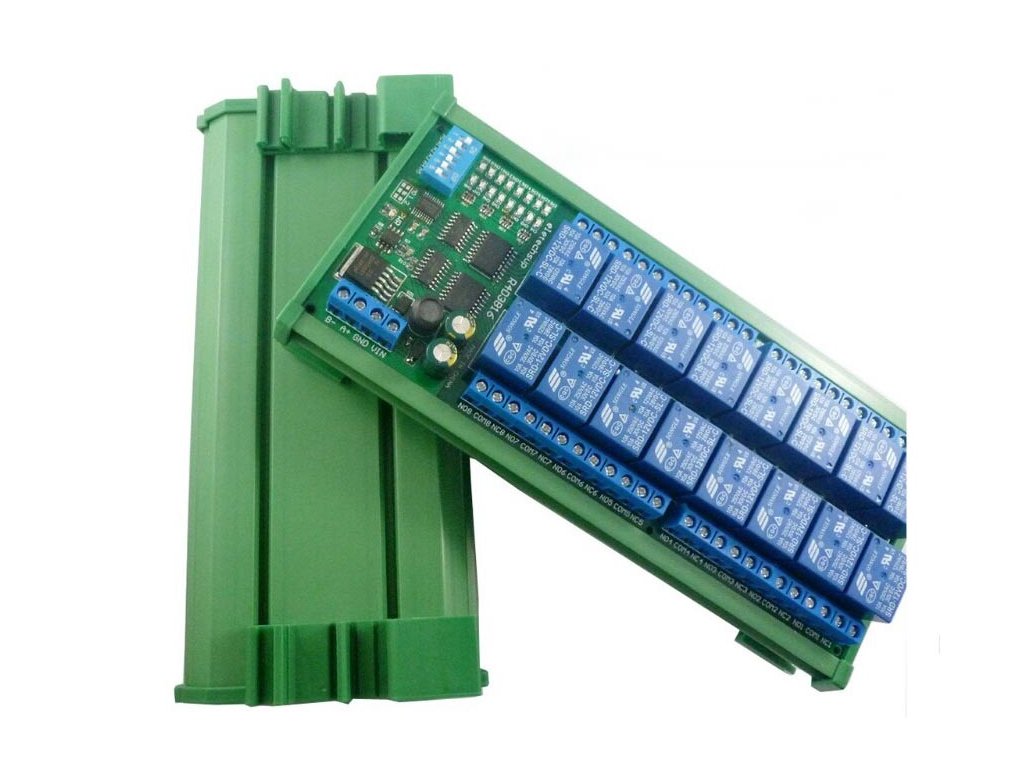

The entire relay module is mounted in a bracket that can be used to mount the module on a standard DIN rail. It can thus be easily used even in industrial environments.

Specifications:

• Relay: Songle SRD-12VDC-SL-C
• Supply voltage: 12V DC
• Current consumption: 25mA/switched 1relay, 460mA/switched all 16relays
• Relay switching contact current: 10A/250V AC, or 30V DC
• Type of relay contacts: changeover
• Communication interface: RS485
• Communication protocol: Modbus RTU or AT commands
• Communication speed: 2400, 4800, 9600, 19200
• Transmission settings: 8N1
• Transmission security: CRC
• Dimensions: 184x88x42mm

Included in delivery:

• 1pc 16-channel 12V relay module 250VAC 10A, RS485, DIN

Note:

• This product is not a standalone functional unit and may require professional installation.
• Product images are for illustration purposes only and may sometimes differ from the actual appearance of the item. However, this does not change its basic properties.
